intitutoculturallatinoamericano: Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts

Perfect Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 0

Perfect Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 1

Discount Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 2

Discount Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 3

Cheap Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 4

Excellent Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 5

Brand Name BAFANG

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

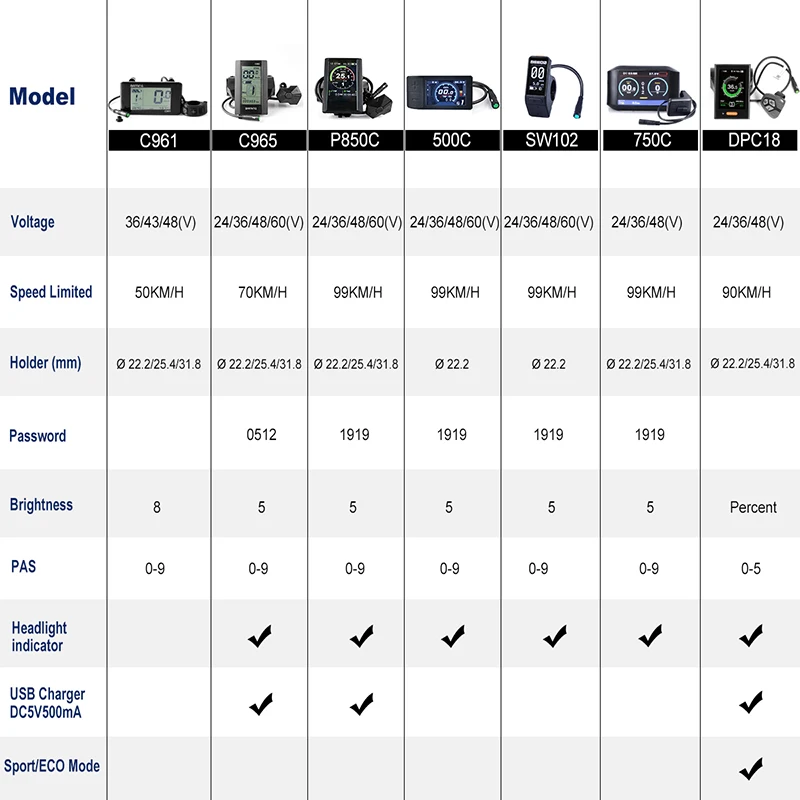

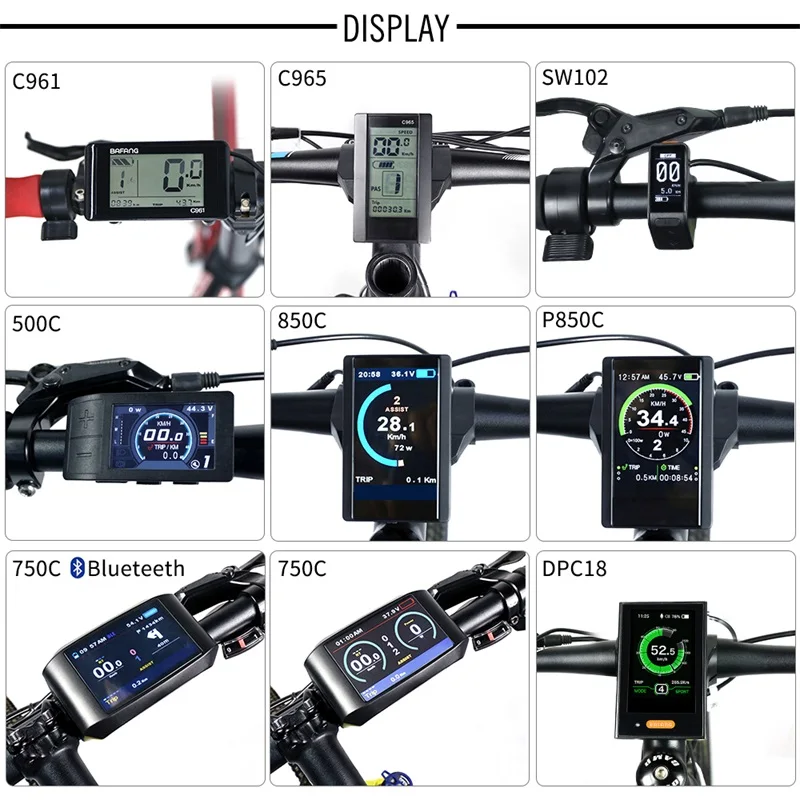

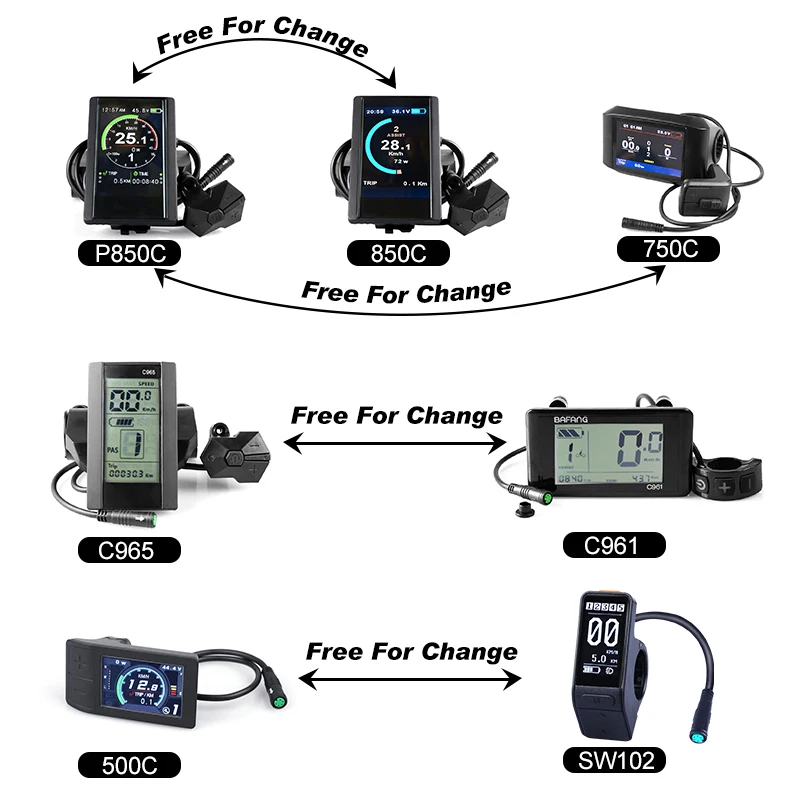

Bafang display C965 C961 500C P850C SW102 DPC18

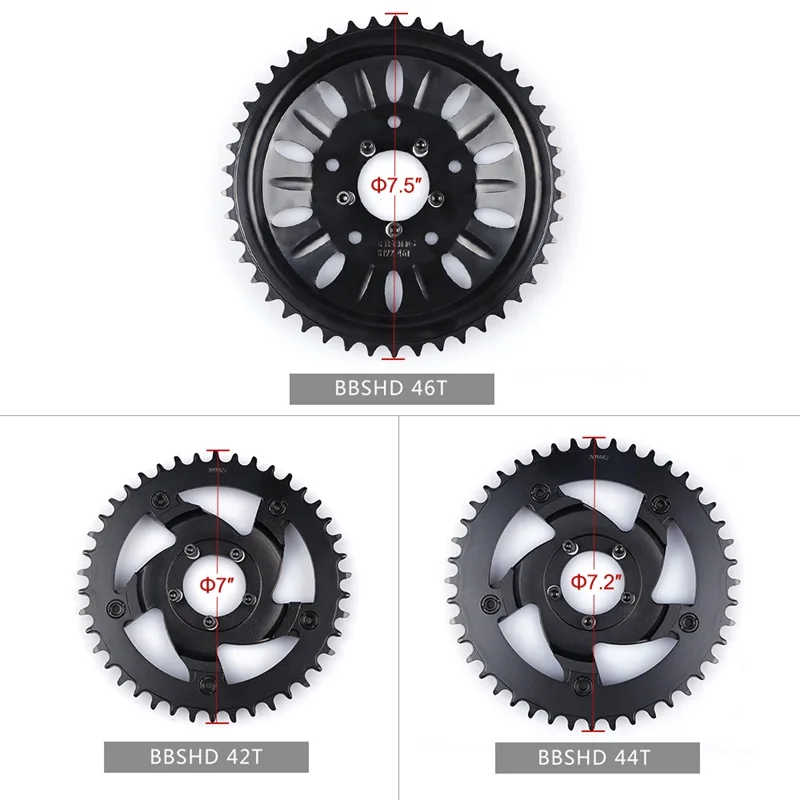

Chain Wheel Size 42T 44T 46T

Bafang/8FUN Motor Model MM G320 1000 BBSDHD

Ebike Conversion Fit For Bottom bracket 68mm-73mm 100mm 120mm

Motor Voltage Power 48V 1000W Mid Drive Motor

Motor Waterproof Rate/Weight IP 65 / 5.9 Kg

Motor RPM 140-150

Battery size 9*11*37 cm 3.5*4.3*14.5 inch

Lithium Battery Cell Built in Sumsung 35ET 3500mah

Battery Weight 4.4 Kg

Battery Parameter 48V 17.5Ah

Battery Motor Warranty Time One Year

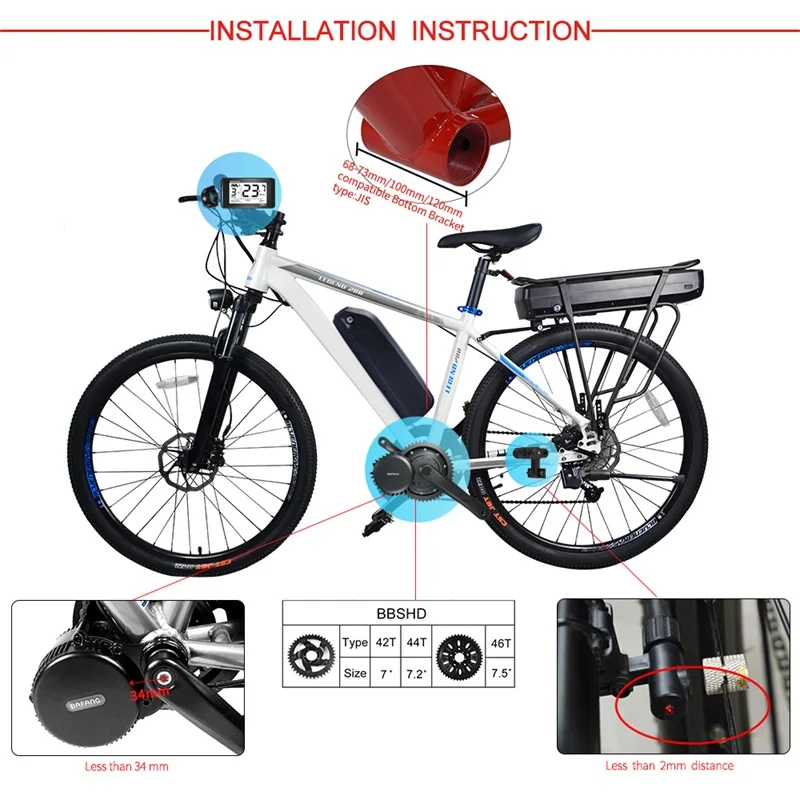

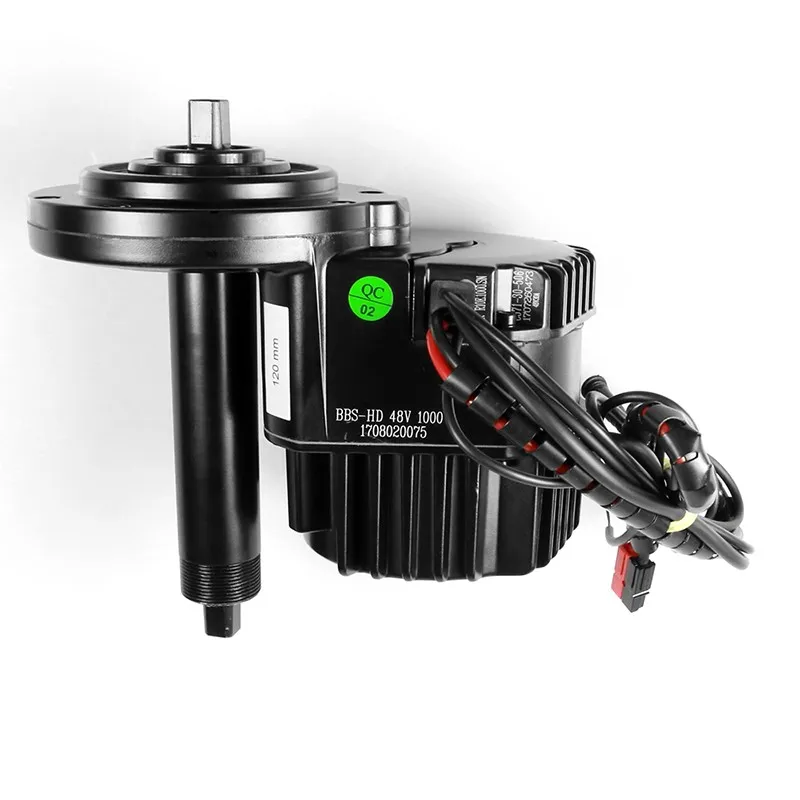

Purchase Note: This motor is fit for theBike Bottom Brackets/BBis68mm-73mmand theInner Diamaterof the bracket(>33.5mm)/should be not less than 33.5mm, please check carefully about your bicycle BB size.(Motor Design is fit for bottom bracket 68mmbike,there is 8 pcs gaskets in the parcel can make it fit bottom bracket 73mm bike,please know) If you bottom bracket is 100mm or 120mm,remark on your order is ok. BBSHDMotor Specification: Power:1000WVoltage:48V No Load Speed(RPM):160 Load Speed(RPM):140-150 MAX Torque:160 N.m Efficiency:>80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 6.0kg Bracket bottom length:68mm100mm120mm Motor Operation Temperature:-20℃-45℃ Display Working Temperature:-20℃-80℃ 48V 17.5Ah Specifications: Normal Voltage: 48V Rated Capacity:17.5AH Battery Cell:Built in Sumsung 35ET 3500mah.65PCS Array mode:13s5p Battery size:367.2*90.1*111mm Battery Weight:4.4KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance Packing list: BBSHD 48V 1000W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Chain Wheel: 42T 44T 46T (We can help you to change the chain wheel size) Display * 1 DPC18 750C P850C C965 C961 SW102 500C 750C Brake Lever * 1 Pair (We can change these toHydraulic Brake Sensor for free) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair Gifts:6v Headlights * 1 pcs + Battery Connect Cable Label Stickers * 4pcs(ForEU) Gaskets * 8 Pcs For Bottom Bracket 73mm 48V 17.5Ah Sumsang Cells Battery And Charger * 1 Set Our Service: Change Display: Price for (C961=C965)(500C=SW102)(P850C=850C=750C),if you want other display please choice the same price one and remark iton your order or leave me message,i'd be happy to replace it for you. Sensor For Hydraulic Brakes:If you need this hydraulic brake sensor please remark it on your order or leave me message. Warranty:Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time : We will reply each clients message as soon as possible ,we will not let you wait too long. About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,BelgiumBulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia,Austria Russian Federation,US,Canada,United Kingdom:TAX Service Include. Other Country:You can remark Tax requirements on your order or leave me message. Recommended E-bike Accessories Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items mustbe in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kindof you to leave us 5 star feedback, if you have any problems, don`t hesitate tocontact us,we will do our best to service with you. Clearance Lock Battery 17.5Ah Bafang BBSHD 48V 1000W Mid Motor Kits E-bike Samsung Cell Motor Kits Display DIY Electric Bicycle Parts 0
